BlueRinse Washdown Tray

BlueRinse Washdown Tray enables operators to washout equipment into a ground-level tray, easily and efficiently. Suitable for skips, pumps and small site equipment; solids are easily shovelled out and the washwater pumped away for treatment or recycling.

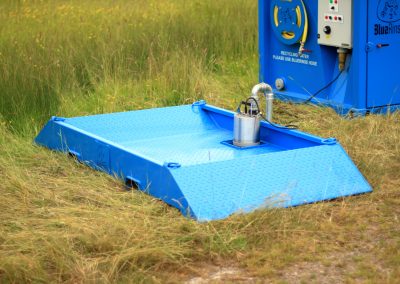

Used as a standalone tray or combined with the BlueRinse Base Unit for a closed loop power wash facility with re-circulating water and pH control.

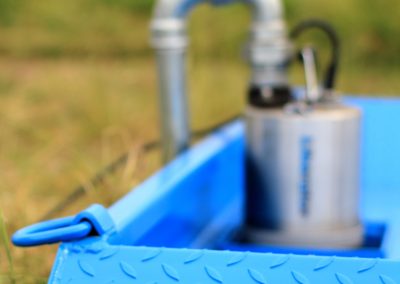

  • Sump to enable a Submersible pump to discharge the water.
  • Ramped access & egress for use with hand-wheeled equipment.
  • Treadplate floor & ramps for anti-slip properties.
  • Useful as a general-purpose site tray.
  • Ideal to capture run-off from our DribblePot portable filtration system.
  • Complements our BlueRinse Base Unit to create a recycling power wash system with pH control
  • Overall Size: 2.23m (7’4″) x 1.3m (4’3″) x 0.28m (11″) (l x w x h)
  • Weight (empty): 240Kg (520lbs)
  • Internal Floor Size: 1.1m (3’7″) x 1.25m (4″1″) (15cm(5″) walls)
  • Maximum Capacity (volume): 240 Litres (52gal)
  • Site Handling: Lifting or Fork Lift Truck.
  • Finish: External Grade Powder Coating
  1. 400W Submersible Pump & 1″ Hose Outlet fitting – (0-02-026)
  2. Hose Accessory, 1″ Hose, 5m (16’4″) length (custom sizes available on request) – (0-02-030)
  3. DribblePot Wheelbarrow – portable filtration for washing small tools, emptying buckets & mortar tubs – (0-01-020)
